Motorola Solutions

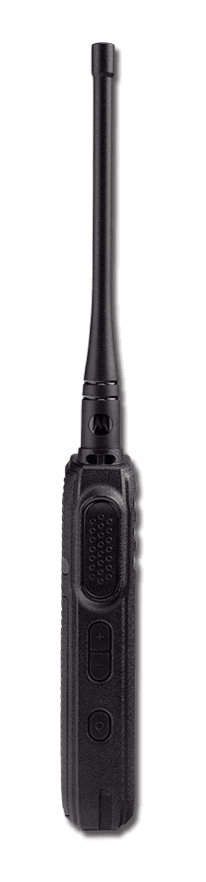

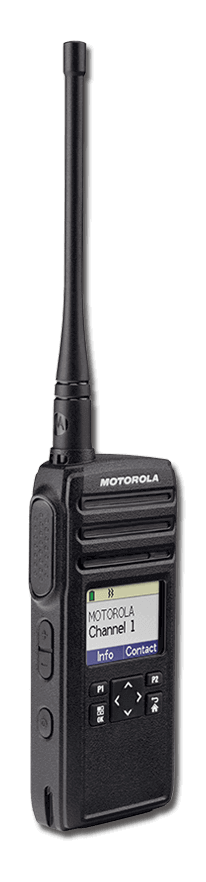

DTR700
Motorola's DTR Series radios are now more reliable than ever - enabling interference-free, private communications to help your team stay focused while keeping communications private.
With its slim, rugged design the DTR700 digital two-way radio is equipped with 50 channel capacity. It is IP54 rated and operates at 900 MHz. A full-graphic color display and intuitive navigation menu help you quickly locate all radio features. The DTR700 offers flexible communication options, including Digital One-to-One Calling and Digital One-to-Many Calling. The DTR700 also provides great coverage, long battery life and digital audio quality that is loud and clear audio wherever you are.
- Performance Characteristics
Frequency Band:
900 MHz
Frequency Range:
900 MHz ISM FHSS
Power Output:
1 W
Number of Channels/Groups/Zones:
50 Channels
Standard battery chemistry type:
Li-ion
Battery life (based on a 5-5-90 duty cycle):
16.5 hrs
- Physical Characteristics
Dimensions H x W x D (with standard battery)
5.06” H x 2.2” W x 1.06” D
(128.5mm H x 56mm W x 27mm D)
Weight (with standard battery)
7.87oz. (223 g)
Keypad / Keys
Limited
Display
Full, Color
- User Environment
Operating temperature
-30C to +60C
Mil spec
810 D, 810 C, 810 E, 810 F, 810 G
IP Standards
IP54
- Additional Information
- Resources
- Accessories
- Available Models
Key features
- Supports digital communications
- 900 MHz
- 50 channels
- 1.0 Watt Output Power
- License free, hassle free
- Slim, rugged design
- Prominent functional keys
Interference free, private communications
DTR Series radios give you peace of mind and keep your team focused on the task at hand, by making your communications more private. To take advantage of Private Communications, you can quickly set up your radio fleet with a unique Radio Profile ID Number. By choosing from 10,000 available codes, you can assure privacy from other neighboring radios. Leverage Frequency Hopping Spread Spectrum (FHSS) technology for more reliable and private communication when compared to standard analog radios.
Designed for business operations, the DTR Series radio will free your time from regulatory paperwork and licensing applications and reduce your costs by saving on frequency and radio licensing fees.
Popular with these industries:
- Education
- Hospitality
- Property Management
- Restaurants
- Retail
Spec Sheets
 | PMAF4024 900MHZ (902-928MHZ) |
 | PMNN4578 Li-ion 2500 mAh, 3.7v Li-ion 2500 mAh, 3.7v |
 | PMLN7939 Swivel Clip Holster |
 | PMPN4469 Single Unit Charger |
 | PMPN4465 6-Pocket Multi Unit Charger |
 | HKLN4604 Swivel Earpiece with in-line microphone and push-to-talk |
 | HKLN4599 Earpiece with in-line microphone and push-to-talk |
 | HKLN4601 Surveillance Kit with in-line microphone and push-to-talk |
The Motorola DTR700 is available in the following models.
- DTS150NBDLAA 900MHz, Limited Keypad
