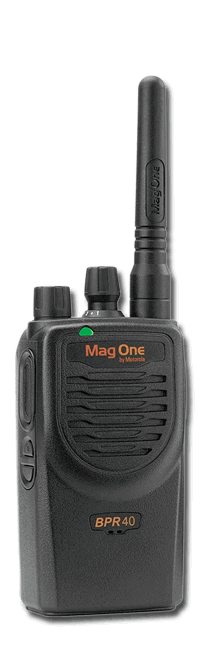

Motorola BPR40

Motorola Solutions bpr40

Motorola Solutions

BPR40

The BPR™40 portable two-way radio delivers reliable, intuitive communication through 8 channels and 2 programmable buttons. The high-/low-power option saves battery charge. Features such as nuisance channel delete and repeater talkaround make the radio a versatile, high-performance device. The BPR40 is part of the Mag One™ by Motorola radio portfolio. This affordable solution gives remarkable quality and value that is perfect for your business, and comes with a complete assortment of accessories to customize your radio.

  • Performance Characteristics

Frequency Range:
VHF:150 - 174 MHz; UHF: 450 - 470 MHz

Power Output:
1W/4W (UHF), 1W/5W (VHF)

Number of Channels/Zones:
8 or 16 Channels

Standard battery chemistry type:
Nickel Metal Hydride

Battery life (based on a 5-5-90 duty cycle):
8 hours (high power - 4W/5W); 11 hours (low power - 1W)

Channel spacing:
12.5/25 kHz

  • Physical Characteristics

Dimensions H x W x D (with standard battery)
4.21 x 2.28 x 1.46 in.

Weight (with standard battery)
12.3 oz

Keypad / Keys
No Keypad

Display
No Display

  • User Environment

Operating temperature
-30° to +60° C (Radio Only)

Mil spec
810 C, 810 D, 810 E, 810 F

IP Standards
IPX4

Request A Quote


  • Additional Information
  • Resources
  • Accessories
  • Available Models

Key features

  • Supports analog communications
  • Supports analog and digital communications
  • UHF, VHF
  • 8 or 16 Channels
  • 1 - 4.0 Watts (UHF) / 1 - 5.0 Watts (VHF) Output Power
  • Analog/Digital Operation
  • Up to 15 hours battery life
  • Mixed-Mode Channel Scan
  • Voice confirmation of button and knob actions

Rugged, Die-Cast Chassis
Polycarbonate housing helps protect your radio from everyday bumps and falls. Both radios are protected against splashing water (IPx4), while the BPR 40d is also protected against dust (IP54).

Digital Mobile Radio (DMR II) Support
Take advantage of advanced digital features, clear voice communications and greater coverage. Interoperate with other DMR radios.

Popular with these industries:

  • Construction
  • Education
  • Hospitality
  • Property Management
  • Retail

Antenna [+]

Motorola PMAD4051

PMAD4051AR

Antenna Stubby VHF 150-174 MHz

Motorola PMAE4020

PMAE4020AR

Mag One UHF 450-470 MHz Stubby Antenna

Batteries [+]

Motorola PMNN4071

PMNN4071

Battery NiMH 1200 mAh

Motorola PMNN4075

PMNN4075

Li-ion High Capacity 1500 mAh Battery

7.2V, 1500 mAh, Li-ion, 12month warranty

Motorola Mag One high capacity battery for the BPR40. 25% more capacity than the standard battery and it uses li-ion chemistry to give you 20% more talk time with less weight. Belt clip not included.

Carry Accessories [+]

Motorola PMLN4742

PMLN4742

Mag One Hard Leather Case

Motorola PMLN4743

PMLN4743

Mag One 2" Spring Belt Clip

Chargers [+]

Motorola EPNN9288

EPNN9288

90-134V, Switch Mode Power Supply with NA/LA Country Plug

Motorola PMLN5041

PMLN5041

Mag One Tri - Chemistry Rapid Charger Base

Motorola PMLN5048

PMLN5048

Mag One Tri - Chemistry Rapid Charger Kit Mag One Tri - Chemistry Rapid Charger Kit (includes Base, Power Supply & AC Cord)

Motorola RLN6350

RLN6350

Mag One Rapid Charger, Li-ion Battery Bundle Kit Mag One Rapid Charger, Li-ion Battery Bundle Kit (includes PMLN5048_R and PMNN4075)

Motorola RLN6393

RLN6393

Multi-Unit Charger

Earpieces [+]

Motorola PMLN4442

PMLN4442

Earbud with In-Line Microphone

Motorola PMLN4443

PMLN4443

Ear Receiver with In-Line Microphone

Motorola PMLN5001

PMLN5001

D-Style Earpiece with MIC/PTT (2 Pin)

Motorola PMLN4294

PMLN4294

Earbud with Mic & PTT Combined
Earbud with Microphone & Push-to-Talk Combined
The Pellet Style Earpiece allows the user to receive communication discreetly and is comfortable for extended wear

Motorola PMLN4605

PMLN4605

Replacement Clear Acoustic Tube

Motorola PMLN4606

PMLN4606

2-Wire Surveillance kit with Clear Acoustic Tube

Motorola PMMN4001

PMMN4001

Ultra-Light Earpiece with Boom Microphone and In-Line PTT

Image Not Available

RLN4894

Earpiece without Volume Control, Black (single wire)

Motorola RLN4895

RLN4895

2 Piece Surveillance Kit, with Microphone and PTT Combined, Black (2-wire - rubber eartip style)

Motorola RLN4941

RLN4941

Receive-Only Earpiece with Translucent Tube and Rubber Eartip An earphone jack located on the microphone allows the user to receive audio when using this earpiece. The translucent tube provides a more discreet option for those that need to receive messages privately

Headsets [+]

Motorola PMLN4445

PMLN4445

Ultra Lightweight Headset w/PTT

Motorola PMLN5003

PMLN5003

Lightweight Temple Transducer Headset

Motorola PMLN5011

PMLN5011

Temple Transducer Headset The PMLN5011 Temple Transducer Headset uses two bone vibration speakers for receiving, and a flexible boom microphone for transmitting. Unlike traditional headsets, the Temple Transducer allows the user's ears to be uncovered and completely free to hear surrounding environmental sounds while using the two-way portable radio. An in-line push-to-talk (PTT) button with clothing clip frees the user from holding the radio while communicating

Remote Speaker Mics [+]

Motorola PMMN4077

PMMN4077

Remote Speaker Microphone - Mag One

Motorola AARLN4885

AARLN4885

Receive-Only Covered Earbud with coiled cord
This earpiece is compatible with all Remote Speaker Microphones with a 3.5 mm audio jack on the head of the microphone.

The Motorola BPR40 is available in the following VHF and UHF models.

VHF

  • AAH84KDS8AA1AN 150-174 MHz, 5W (Ships 1W), 8 Channels
  • AAH84KDJ8AA1AN 150-174 MHz, 5W (Ships 1W), 16 Channels

UHF

  • AAH84RCS8AA1AN 450-470 MHz, 4W (Ships 1W), 8 Channels
  • AAH84RCJ8AA1AN 450-470 MHz, 4W (Ships 1W), 16 Channels
